1. About Civil Installation Wires

Civil installation wires are essential components for power distribution and electrical connection in residential, commercial and public buildings. According to their structure, flexibility, function and application scenarios, they are divided into two major categories by Taitong Cable: civil flexible cables (including shielded flexible cables) and household electrical installation wiring cables. These two series differ significantly in material composition, electrical and mechanical properties, application scenarios, installation methods and precautions. We will elaborate on their characteristics and differences for engineering selection and standardized construction.

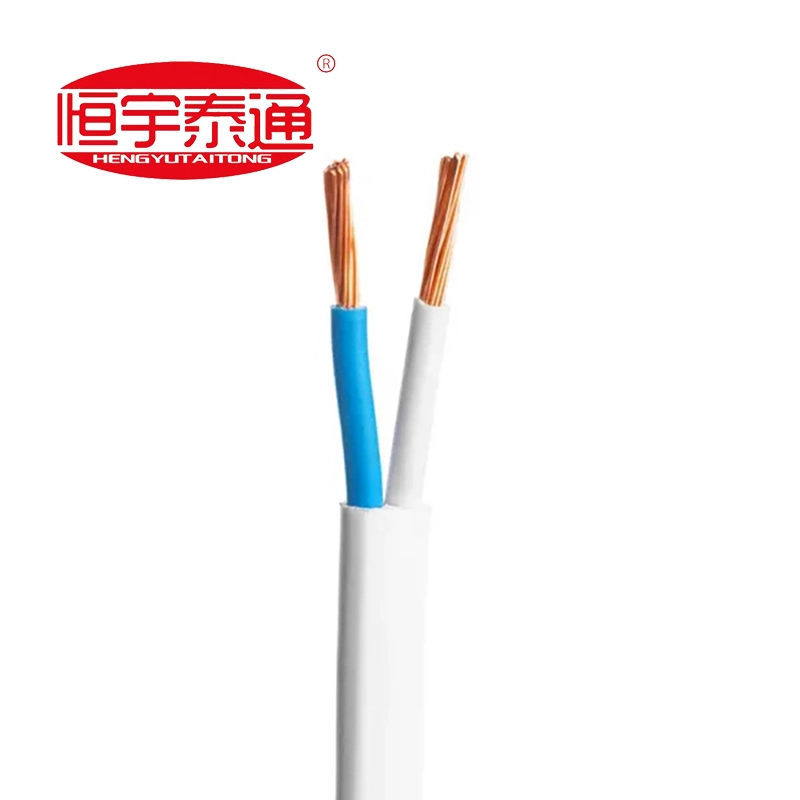

2. Civil Flexible Cables and Shielded Flexible Cables

2.1 Material Composition

Civil flexible cables and shielded flexible cables adopt stranded fine copper conductors, which are formed by twisting multiple thin oxygen-free copper wires, featuring high flexibility and bending resistance. The conductor is wrapped with an insulating layer, usually made of polyvinyl chloride (PVC) or low-smoke halogen-free flame-retardant material. Shielded flexible cables add an extra shielding layer, generally aluminum foil composite or tinned copper wire mesh, between the insulation and the outer sheath, used to isolate electromagnetic interference. The whole structure of civil flexible cables and shielded flexible cables is light, soft and easy to bend. Taitong Cable can customize corresponding wire and cable solutions according to customer requirements.

2.2 Product Performance

They have excellent flexibility and small bending radius, suitable for frequent movement and repeated bending. The stranded structure of civil flexible cables reduces heating and improves current-carrying stability under dynamic conditions. Flame-retardant and low-smoke halogen-free types can effectively inhibit flame spread and reduce toxic smoke. Shielded models have strong anti-interference ability, which can stabilize signal and current transmission and avoid mutual interference between lines. The flexible civil installation cables mainly used for temporary power supply, mobile equipment and weak current control, not for long-term fixed main lines.

2.3 Typical Application Scenarios

Civil flexible cables are widely used in household appliances, extension cords, power distribution cabinets, small electrical equipment and temporary construction power supply. Shielded flexible cables are mainly used in precision electrical equipment, audio and video systems, monitoring lines, frequency conversion control circuits and weak current control systems to ensure stable signal and current transmission in complex electromagnetic environments.

2.4 Installation Guidelines

They are suitable for installation in wire ducts, hoses and equipment interiors. They can be bent and laid according to space requirements, but should avoid sharp corners and extrusion. The shielding layer of shielded cables must be reliably grounded at a single end to give full play to the anti-interference effect. They are not allowed to be directly embedded in walls, floors or concrete as fixed main lines.

2.5 Precautions

Do not overload for a long time to prevent insulation aging and short circuit. Avoid dragging, twisting and mechanical damage during use. The shielding layer must be intact; once damaged, the anti-interference performance will fail. They are only used for terminal power supply and control connection, and cannot replace fixed installation wires for main circuit laying.

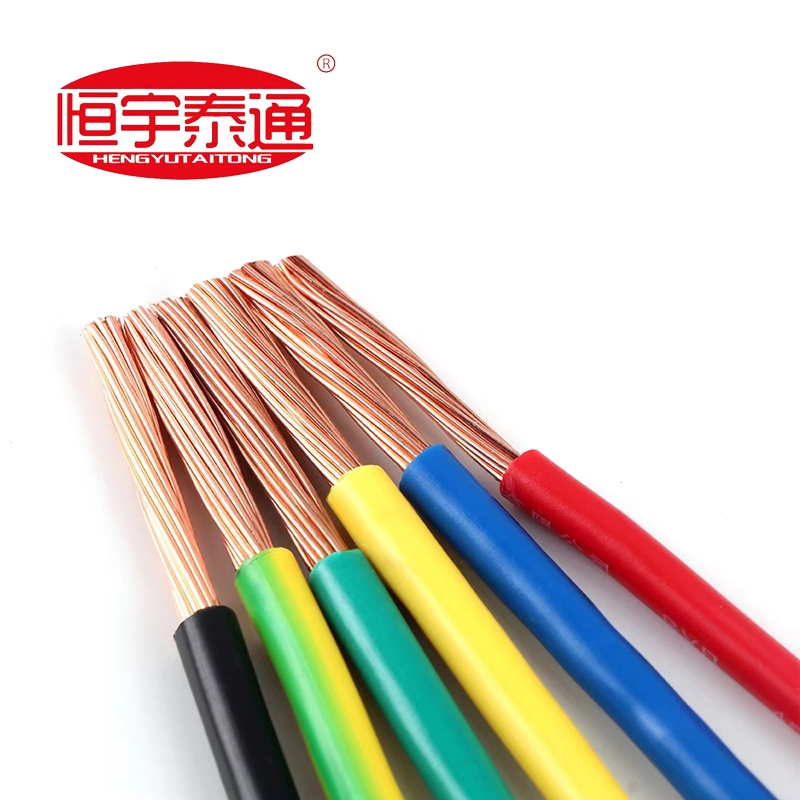

3. Household Electrical Installation Wiring Cables

3.1 Material Composition

This type of cable is designed for fixed power distribution, mainly including single-core hard wires and multi-core soft wires. The conductor is high-purity oxygen-free copper with good conductivity and low resistance. The insulating layer is mostly PVC, flame-retardant PVC or low-smoke halogen-free material, with high mechanical strength, strong voltage resistance and good aging resistance. The structure is simple, stable and not easy to deform, suitable for long-term fixed laying.

3.2 Product Performance

Household Electrical Installation Wiring Cables has stable electrical performance, low line loss, small heating and high safety. The insulation has strong voltage resistance, heat resistance and aging resistance, and can maintain stable performance for a long time in the building environment. Single-core hard wires have high mechanical strength and are convenient for pipe penetration and fixed laying. Multi-core soft wires are easy to terminate and connect, suitable for terminals and distribution boxes. These cables support long-term full-load operation and meet the life requirements of civil buildings.

3.3 Typical Application Scenarios

Household electrical installation wiring cables are used as fixed power distribution lines in civil buildings, including indoor lighting, ordinary sockets, kitchen circuits, bathroom circuits, air conditioners, water heaters and household main incoming lines. They are laid in pipes in walls, ceilings and ground, serving as the main power transmission channels of the whole building.

3.4 Installation Guidelines

The cables used in household electrical installation must be laid through flame-retardant PVC conduits or metal conduits. Strong current and weak current lines should be laid separately to maintain a safe distance. The wire specification should be selected according to the load capacity: 1.5mm² for lighting, 2.5mm² for ordinary sockets, 4mm² for high-power electrical appliances, and 6mm² or above for main lines. Joints should be crimped or tinned to ensure firm contact and avoid poor contact and heating.

3.5 Precautions

Prohibit bare wires, mixed wiring in the same pipe and forced bending. It is forbidden to use wires with too small cross-section for high-power electrical appliances to avoid overload and fire. In humid environments such as bathrooms and kitchens, use cables with better moisture-proof and waterproof performance. Regular inspection should be carried out after installation to avoid potential safety hazards caused by insulation aging. Find Taitong Cable to make your household electrical installation solutions.

4. Core Differences Between the Two Categories

The biggest difference of these two cables lies in application scenarios: household electrical installation wiring cables are used for fixed main power distribution, while civil flexible cables and shielded flexible cables are used for mobile equipment and terminal connection. In terms of structure, installation cables focus on strength and stability, while flexible cables focus on flexibility and anti-interference. In installation, installation cables must be fixed through pipes, while flexible cables are mostly used for temporary and mobile laying. In use, installation cables are for long-term fixed power supply, and flexible cables are for dynamic and terminal occasions.

5. Conclusion

In civil electrical installation, household electrical installation wiring cables are the main body of fixed power distribution, undertaking the long-term and stable power transmission of the whole building. Civil flexible cables and shielded flexible cables are responsible for flexible connection and anti-interference control of equipment. Correct selection and standardized installation according to different scenarios can effectively improve the safety, stability and service life of the electrical system.
